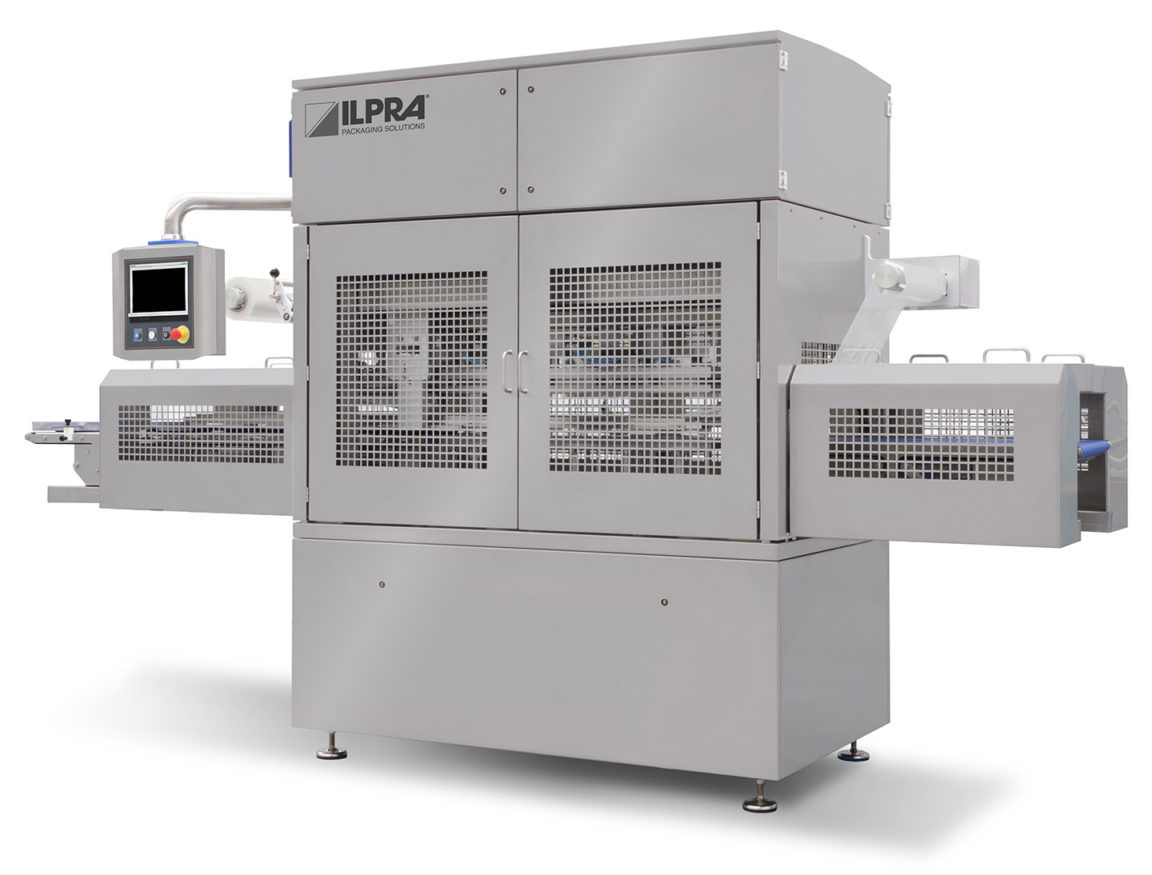

Hyper 1000 / 1250 Tray Sealer

Description

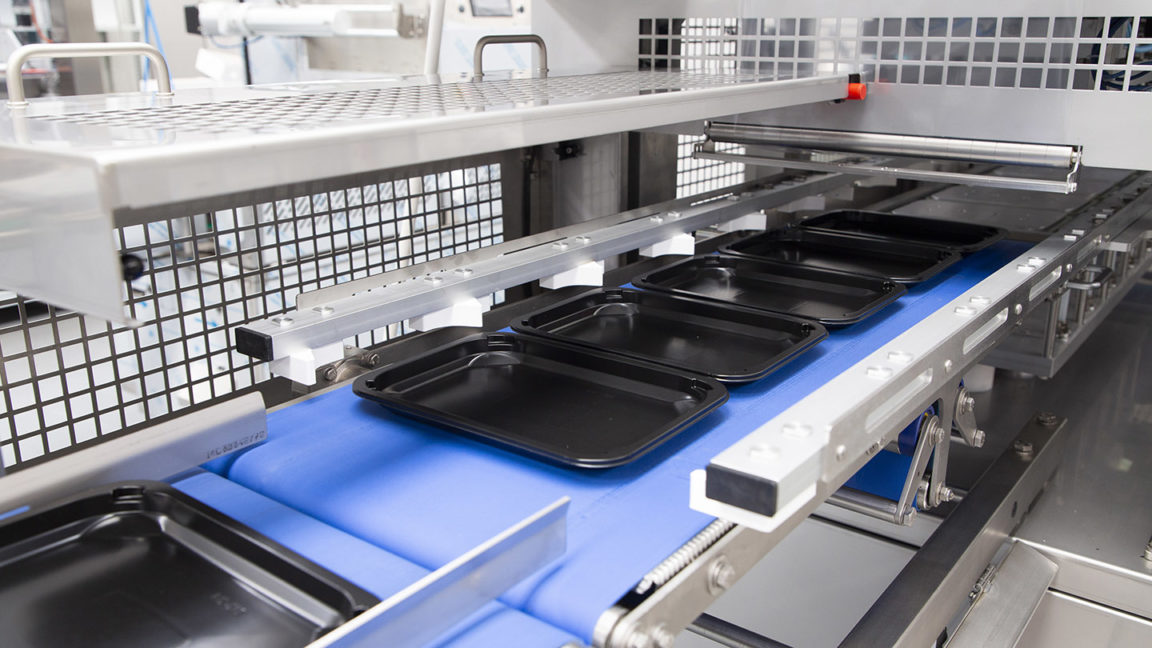

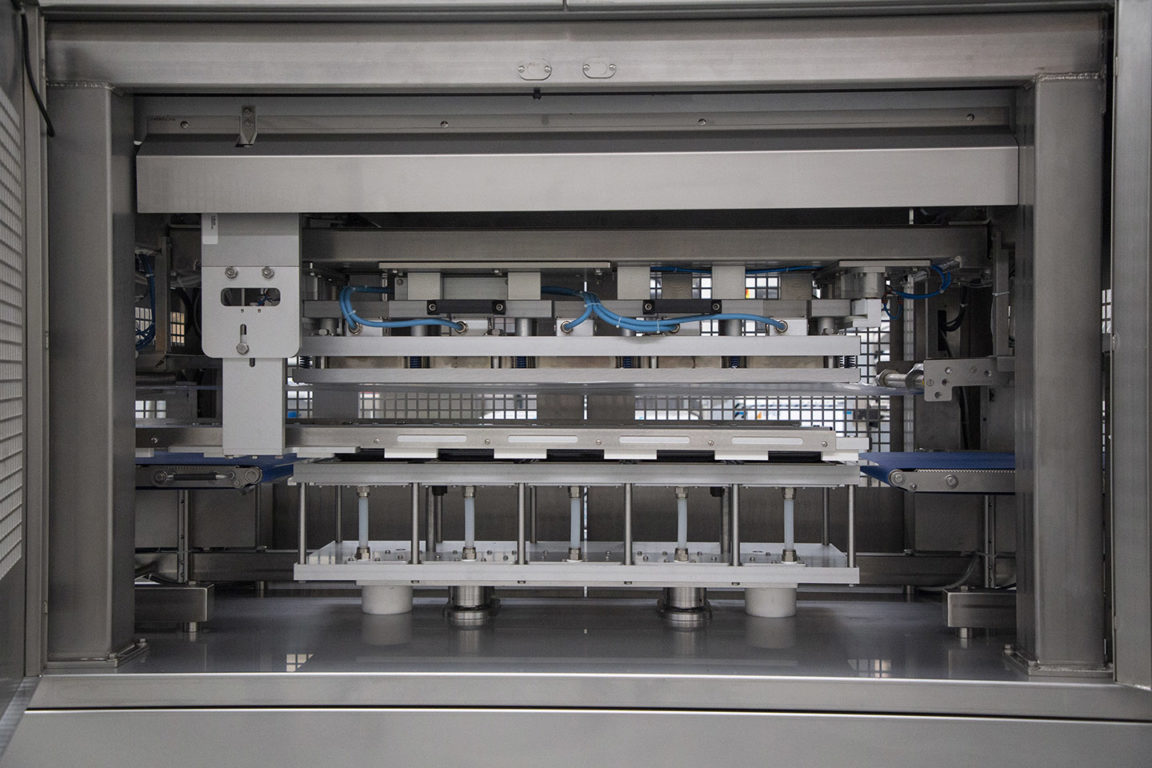

FOODPACK Hyper Tray Sealer is a new concept in-line Tray Sealer resulting in 60+ years of professional engineering experience and continuous research and development. All the main movements are mechanical and driven by servo motors. With the Hyper models technology and engineers, customers can expect the highest level of production throughput with minimal film scrap waste, thanks to the newly engineered tooling. The movement of the containers towards the area of sealing takes place through high precision, continuous motion technology. This process takes place by a set of transport jaws working in complete synergy with the infeed belt and picking up the containers and transporting them inside the area of sealing, without deceleration of speed. In the station of sealing servo technology guarantees precision, speed of execution, reduced maintenance and no compressed air consumption. The film tensioning is automatic and electronically controlled, and mould changeover has been made easier than ever before.

The Hyper comes in two sizes, 1,000 / 1,250mm sealing area.

Request for Quote: Hyper 1000 / 1250 Tray Sealer

Request a Quote

  • Hidden

Machine Footprint

Hyper Tray Sealer Footprint

Specifications

Machine dimensions (mm) 4000 x 1100 x 2200h
Machine weight (Kg) approx. 1800
Air consumption (bar – lt/cycle) 6 – 3
Area of sealing (mm) 350×1000 h120
Max. size diameter (mm) 300

Main Standard Features

Stainless steel structure

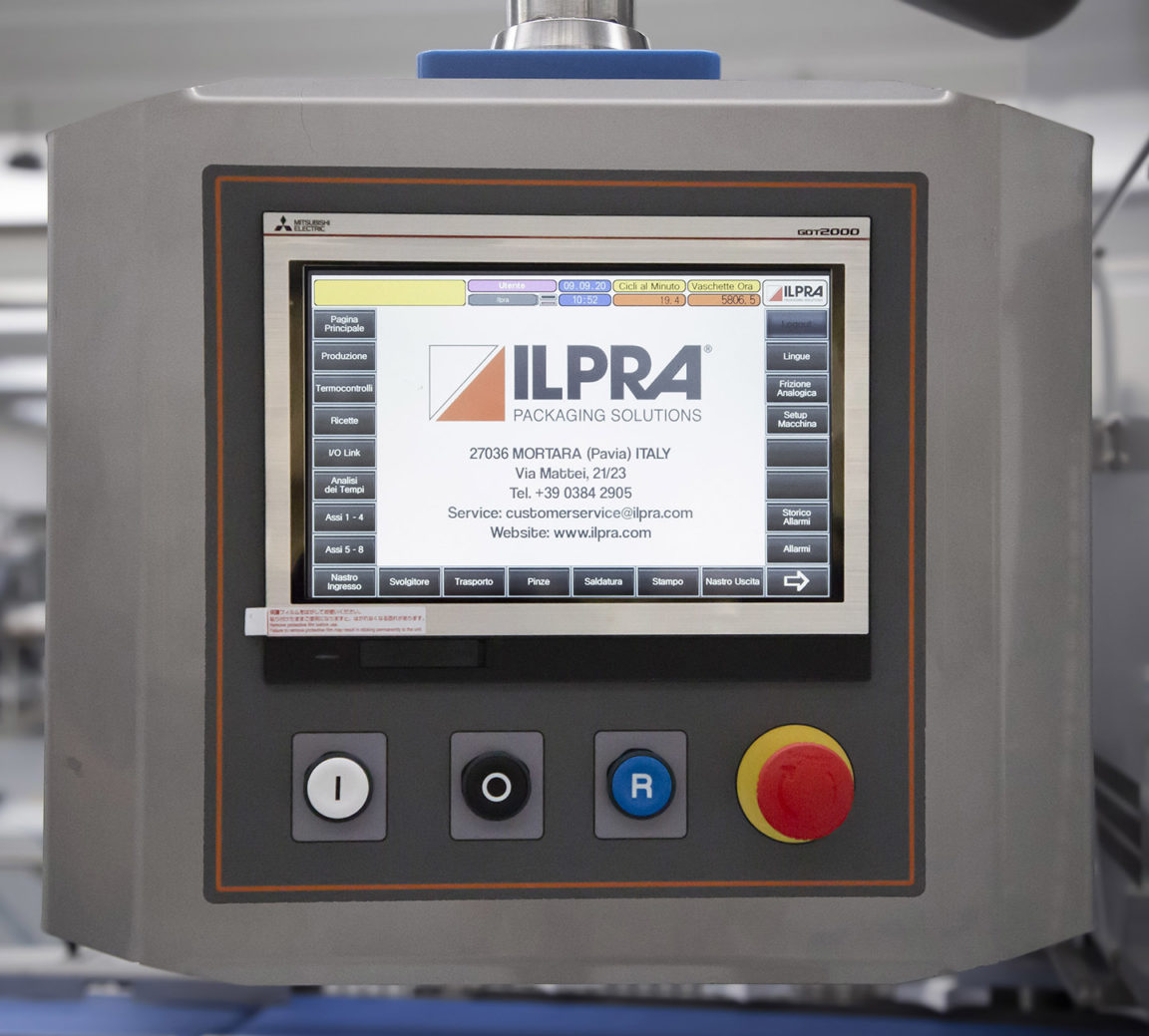

Touch screen
In-line power supply
Motorized ejection belt
Automatic film tensioning

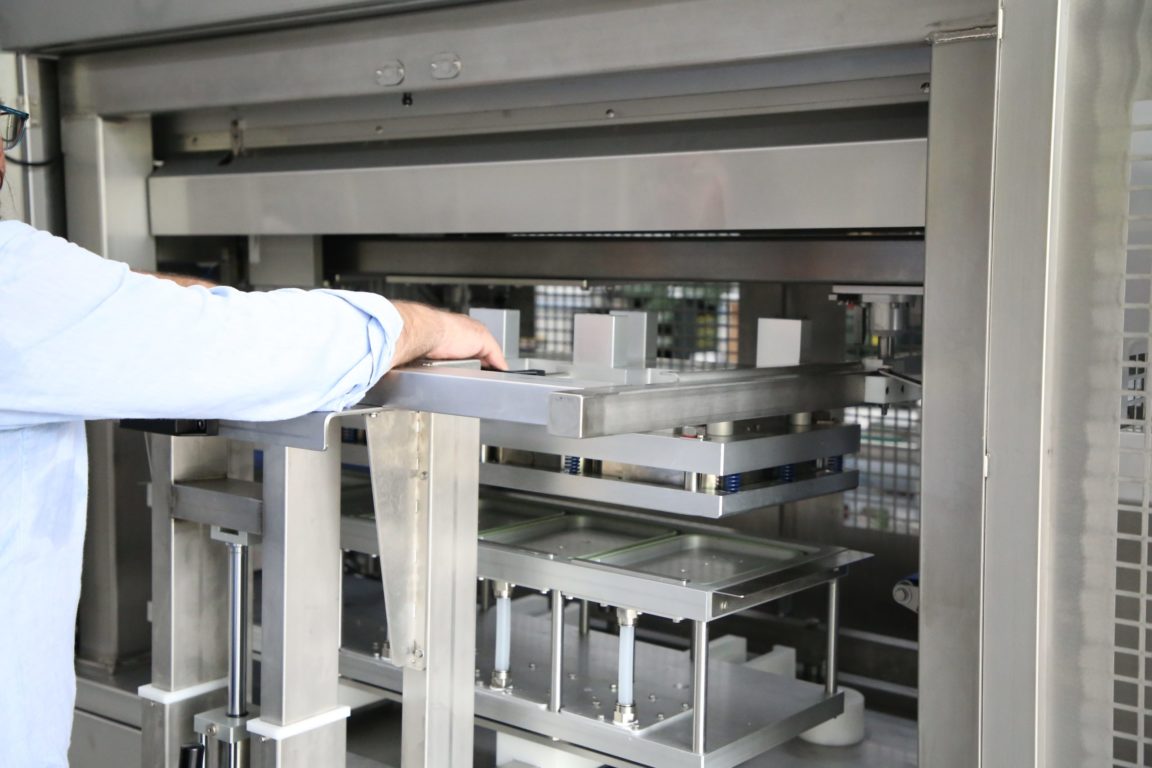

Quick format changeover
Maximum integrability and customization
Total Accessibility
Brushless drives

Main Options and Accessories

Print centring system
Thermal transfer printer
Compact version
Chain trays feeding
Automatic dosing systems
Cup denester
Glyph trays feeding
Skin – Overskin – Extraskin version

Videos

Strip Steak

Pasta

Tomatoes

Cherry Tomatoes

Grapes

ILPRA In-Depth Webinar on Hyper Model

On-site Production demonstration

Shellfish Seafood fully automated line

VSP/Skin Package for Prepared Food

Images
